Allow one operator to cope with most of remote deployment conditions
Made of macromolecule polyester carbon fiber and Kevlar fiber-glass weighting 7 kg without sensors. It can be carried by a single person during the entire project from on-site transport, installation, calibration, and mission processing
Integrated IMU to overcome temporary GNSS outage
The integration of GNSS and IMU sensor provides accurate position and attitude data to compensate for hull sway on survey results. The Apache3 provides consistently high accuracy positions even during temporary GNSS outages while passing under bridges. Tight integration of GNSS and INS data eliminates outliers
High-efficiency maritime design propulsion
High-efficiency maritime design propulsion DC-injection rotary motor technology provides a 40% increase in energy conversion efficiency. The motor’s high speed (7,000 rpm), anti-collision design with a sealed straw cover with oblique titanium alloy mesh and anti-corrosion design (resistant to one month’s immersion in sea water) make it extremely durable
Maintain a perfect straight sailing course even in complex current conditions

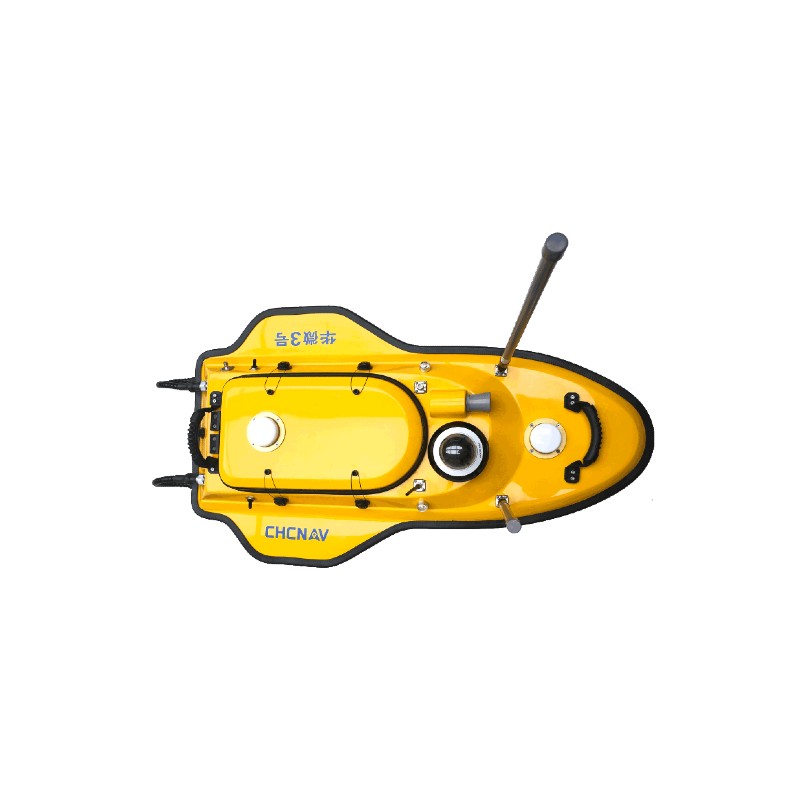

Integrate high precision GNSS positioning and heading technology to ensure high accuracy bathymetric survey in fully autonomous mode. With less than 1 m length and pocket-hulled vessel design, the APACHE3 supports operation in shoals, channels, and shallow rivers for the bathymetric survey without run aground.
GMX Systems is the exclusive representative in Israel of the measuring instruments from “TOPCON” corporation that is one of the three largest manufacturers in the world and is considered the glory of the Japanese industry, “TOPCON” products are among the most advanced in the world.
