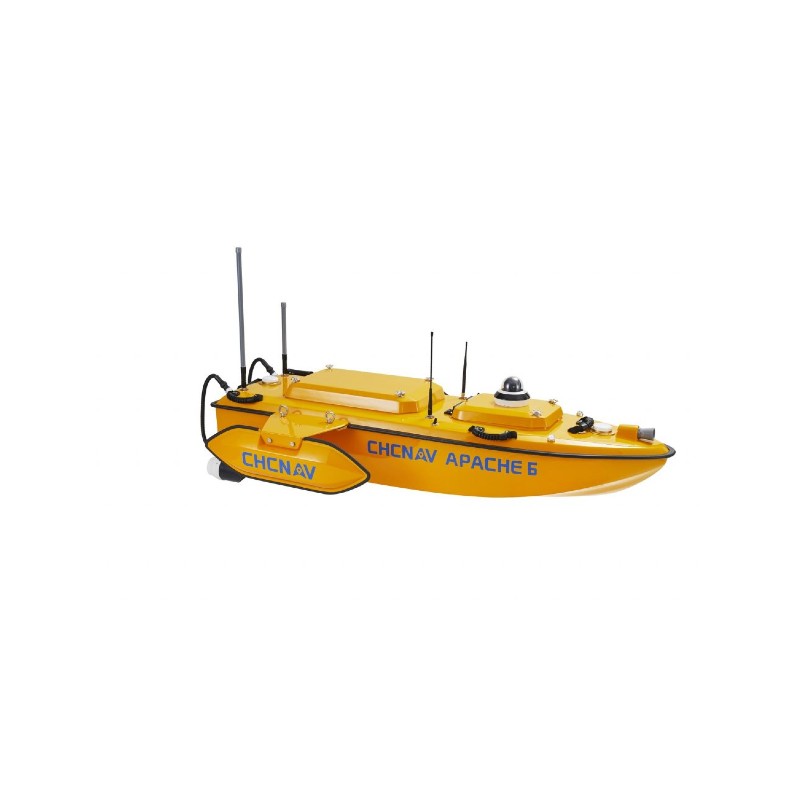

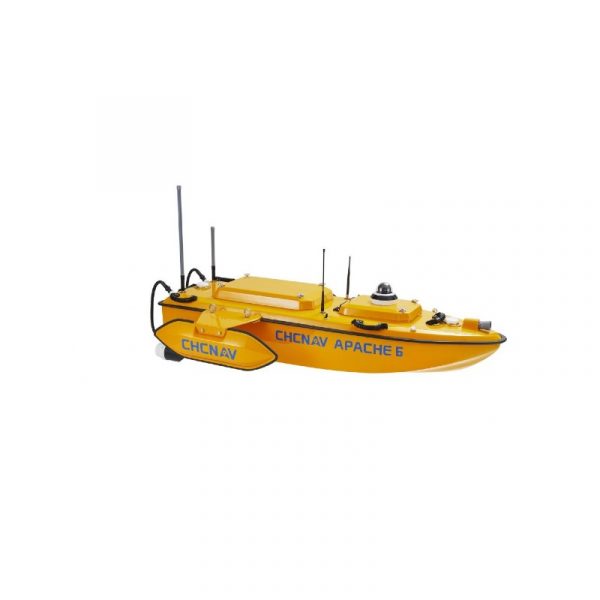

APACHE6 batimetric surveying USV

Autonomous hydrographic and bathymetric survey USV

Allows two operators to cope with most of remote deployment conditions

Made of macromolecule polyester carbon fiber and Kevlar fiber-glass weighting 15 kg without sensors

Versatile USV solution for offshore, coastal and inland water and lakes surveys

Its dual detachable floating bodies keep the hull balanced even in the rapid current situation. Removing the floating bodies allows operation in shoals, channels and shallow rivers without run aground

High-end turnkey multibeam USV solution for high resolution bathymetry

APACHE 6 design is optimized for the NORBIT iWBMSe, iWBMS and iWBMSh-STX series offering with high end performances to match the most demanding hydrographic survey requirements

Collect up to 300 000 points per second at a 30 x 360 degree coverage

The optional NORBIT iLiDAR mapping sensor provides high-accuracy combined marine and terrestrial 3D survey in a single pass saving significant processing time when performing harbor and river surveys with height clearance evaluation.
